Amp - Amplifier - Streamer amplifier - gray - WiiM

• WiiM Amp - Amplifier - Streamer amplifier - gray - WiiM

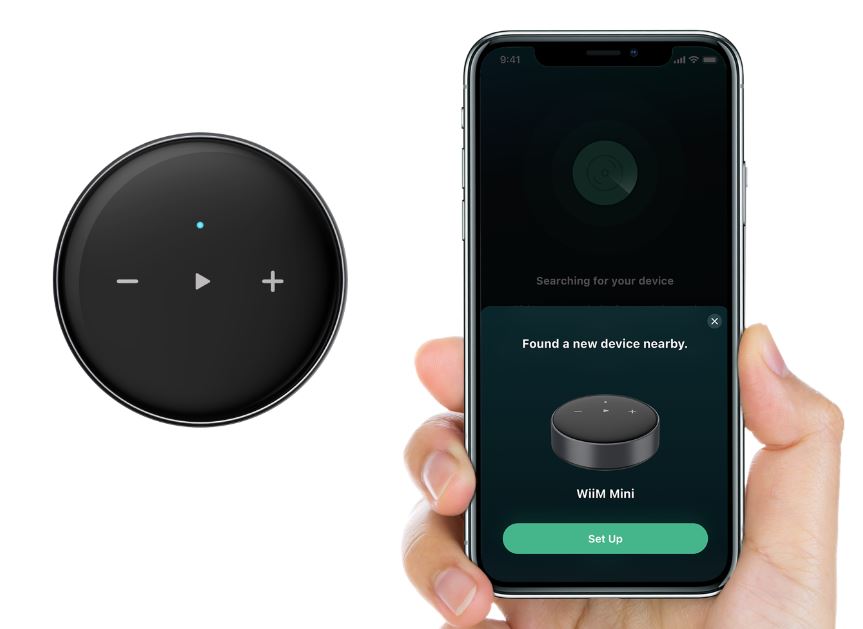

It has never been easier and more convenient to stream than with the WiiM Mini.

You do not need expensive streaming devices. Just use your cell phone, for example. The sound is better than some expensive devices.

Make any wireless audio device smart.
Wiim Mini, the ultimate audio streamer with Hi-Res audio and wireless multi-room/multi-channel streaming.

Audio in multiple rooms
Building a wireless multi-room system has never been easier. You can group the WiiM with other Airplay 2 speakers, Alexa-enabled devices, or another WiiM Mini for a synchronized audio experience.

Hi-Res Audio Supports Up to 192 kHz/24 Bit
It supports up to 192 kHz, 24-bit audio output, which is the equivalent of recording an artist in the studio. The built-in TI stereo DAC provides the high-quality analog audio output with 106 dB SNR, dynamic range and -92 dB THD+N performance . provides high.

Support many music streaming services
Many top music streaming services are supported in the WiiM companion app and through AVS, including: Spotify, iHeartRadio, Tidal, Amazon Prime Music, Napster, Deezer. More will follow.

A few questions/answers to better understand WiiM's functionality.

How is WiiM Mini different from other wireless audio receivers?
WiiM Mini is super easy to set up and supports high-res audio streaming over Wi-Fi. It gives you the ability to play content via Apple Airplay 2 and Spotify/TIDAL Connect. It can be grouped with other Airplay 2 or Alexa devices to play in a group for wireless multi-room audio. It supports popular music services via its user-friendly device companion app. It also has an analog audio input, so you can connect your audio device and listen to it on multiple devices.

Can I control WiiM Mini with voice?
Yes, WiiM Mini can be voice controlled with Amazon Alexa and Apple Siri when connected to a voice-enabled device (such as Echo, iPhone or Homepod, etc.) via Wi-Fi.

Can I watch videos from Netflix and YouTube on my phone, tablet or PC and listen to audio on the WiiM Mini?
You can watch videos on your phone and tablet and listen to them on your favorite speakers/soundbar via Airplay2.

Can I use multiple WiiM Mini devices to create a whole-house wireless sound system?
Yes, WiiM Mini supports Airplay2 so you can group it with other Airplay2 devices. You can also group it with your other Alexa-enabled devices (such as Echo) through your Alexa app. In addition, you can group multiple devices in the WiiM Home app to easily create a whole-house wireless sound system.

Can WiiM Mini be calibrated to have no delay with other Apple Airplay 2 speakers?
WiiM Mini supports automatic calculation of its audio latency via its built-in microphone, which allows it to play in sync with other Apple Airplay 2 speakers.

Does WiiM Mini support changing EQ settings such as bass and treble?
Yes, you can change EQ settings in the WiIM Home app for a better listening experience.

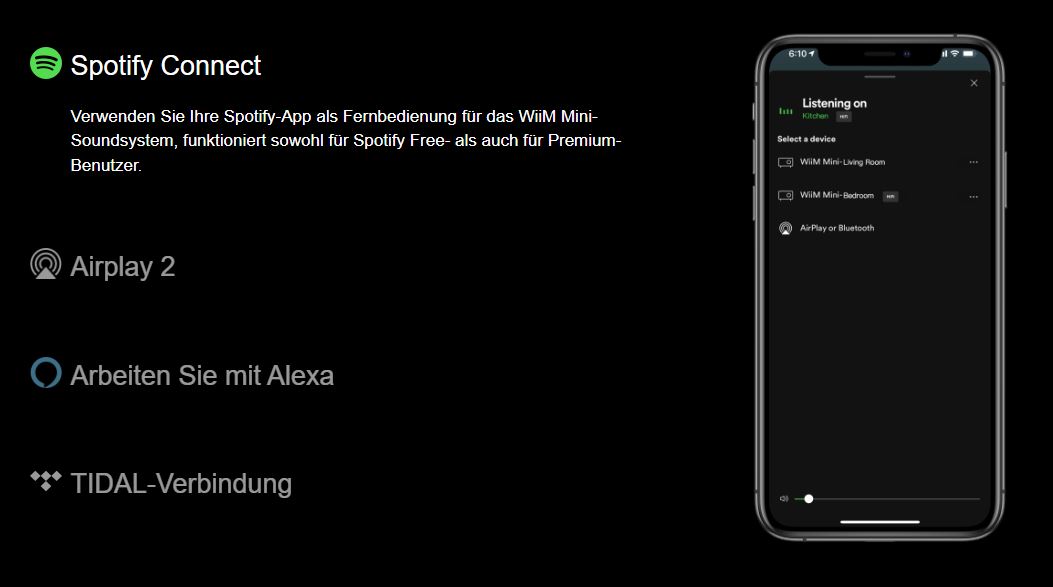

Use your Spotify app as a remote control

Technical Specifications

• Audio codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• W-lanDual-band WLAN supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz networks
• Bluetooth: Bluetooth 5.0, SBC and AAC codec, BT receiver and transmitter (with SW update)
• Line Out:
  • Line-in to Line-out：
  • Output power = 2 Vrms
  • THD+N ratio = 0.009 %
  • SNR = 102 dB
  • Crosstalk = -106 dB
  • Dynamic range = 96 dB
  • BT input to line output:
  • Output power = 2 Vrms
  • THD+N ratio = 0.009 %
  • SNR = 102 dB
  • Crosstalk = -106 dB
  • Dynamic range = 96 dB
• SPDIF
  • Input to SPDIF output:
  • Output power = -3 dBFS
  • THD+N ratio = 0.005 %
  • SNR = 102 dB
  • Crosstalk = -103 dB
  • Dynamic range = 97 dB
  • BT input to SPDIF output:
  • Output power = 0 dBFS
  • THD+N ratio = 0.005 %
  • SNR = 297 dB
  • Crosstalk = -364 dB
  • Dynamic range = 213 dB
• Power supply5V, 1A
• LED: Three-color status LED - red, green and white.
