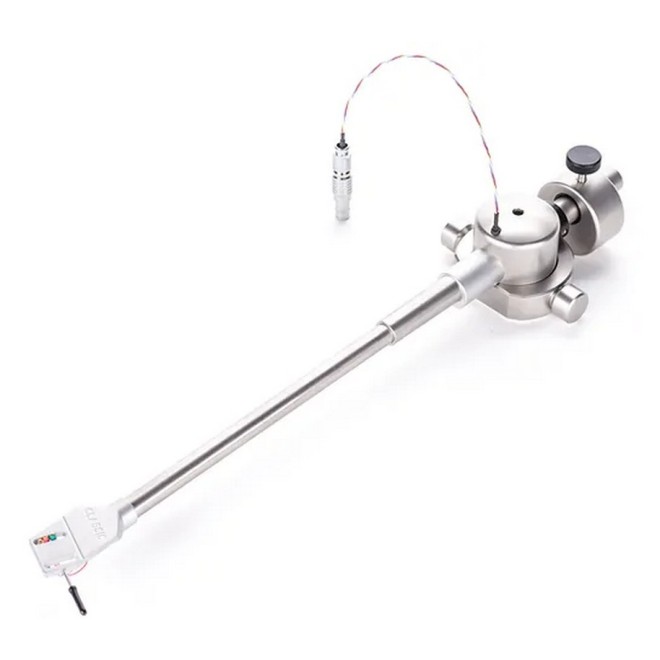

VPI JMW-10 Uni-Pivot - 10-inch metal tonearm for maximum sonic performance
The VPI JMW-10 Uni-Pivot metal tonearm is a precision audiophile instrument designed specifically for discerning vinyl enthusiasts. The 10-inch version of the legendary JMW system combines proven Uni-Pivot technology with the mechanical stability of a carefully crafted metal tonearm - for maximum control, sensitive tracking and exceptional sonic transparency.

Sound character & performance
Thanks to the extended tonearm length, the JMW-10 reduces the tracking error angle compared to shorter arms - which is noticeable in lower distortion behavior, smoother running behavior and improved spatial imaging. The sound reproduction is extremely precise and at the same time musically flowing and airy. Voices, acoustic instruments and dynamic recordings in particular benefit from the sensitive scanning of this arm.
The Uni-Pivot principle offers maximum freedom of movement with minimal friction, resulting in a natural and open reproduction.

Technical data

  • Bearing type: Uni Pivot
  • Internal wire: VPI copper mesh
  • Distance between grid and spindle: 258 mm
  • Effective length: 273.42 mm
  • Effective mass: 11 g
  • Overhang: 15.42 mm
  • Offset angle: 19.98 degrees
  • Average RMS distortion: 0.311 %
  • Material: Aluminum and steel



Design & workmanship
The JMW-10 metal arm looks like a precision mechanical work of art thanks to its solid construction and precise workmanship. The high-quality anodized aluminium not only ensures high torsional rigidity, but also excellent resonance characteristics. All critical parameters such as VTA, azimuth and tracking force are fully and precisely adjustable - without additional tools.

Special features

  • 10-inch design for reduced tracking errors
  • Uni-Pivot bearing for maximum sensitivity in groove tracking
  • Stepless adjustment of azimuth and VTA
  • Permanently integrated headshell for optimum energy dissipation
  • Ideal for MC and high-quality MM systems
