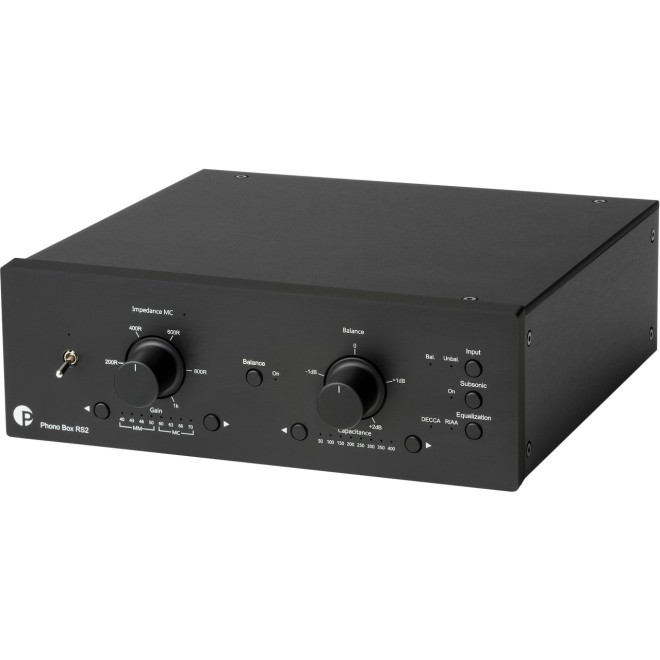

Pro-Ject Phono Box RS2 - Phono preamplifier - black

The Pro-Ject Phono Box RS2 presents itself as an outstanding phono preamplifier that fulfills audiophile demands at the highest level. The elegant black housing lends any audio setup a timeless elegance and underlines the exquisite craftsmanship that goes into every detail. The Phono Box RS2 is more than just an amplifier - it is a bridge to pure sound enjoyment.

Developed by Pro-Ject Audio Systems, a pioneer in the field of audiophile technology, the Phono Box RS2 offers innovative solutions for vinyl lovers. The RCA connection ensures a perfect connection with existing audio components, while the possibility of continuous adjustment offers a customizable listening experience. Whether as an introduction to the world of record amplification or as a mid-level solution for demanding hi-fi enthusiasts, this device impresses with its expandable structure and optional battery support, which minimizes disruptive influences.

• High-quality phono preamplifier: Designed for an uncompromising audiovisual experience.
• Versatile: Supports both MM and MC cartridges.
• Subsonic switchable: Effective filtering of unwanted frequencies for a crystal-clear sound image.
• Entry-level convenience: Ideal for newcomers and mid-level audio enthusiasts.
• Customization: Infinitely adjustable for personal preferences.
• Battery operation: For a stable power supply without mains interference.

The Phono Box RS2 combines traditional amplifier technology with the modern demands of the hi-fi world to delight both connoisseurs and novices alike. Its flexible adaptability makes it a valuable part of any audio setup. The Austrian construction guarantees the highest quality workmanship and long-lasting performance.

Black as a housing color is not only aesthetically pleasing, but also allows seamless integration into different living styles and audio systems. The Pro-Ject Phono Box RS2 is more than just a component - it is the key to a captivating sound experience that reignites a passion for music.

Technology for good sound

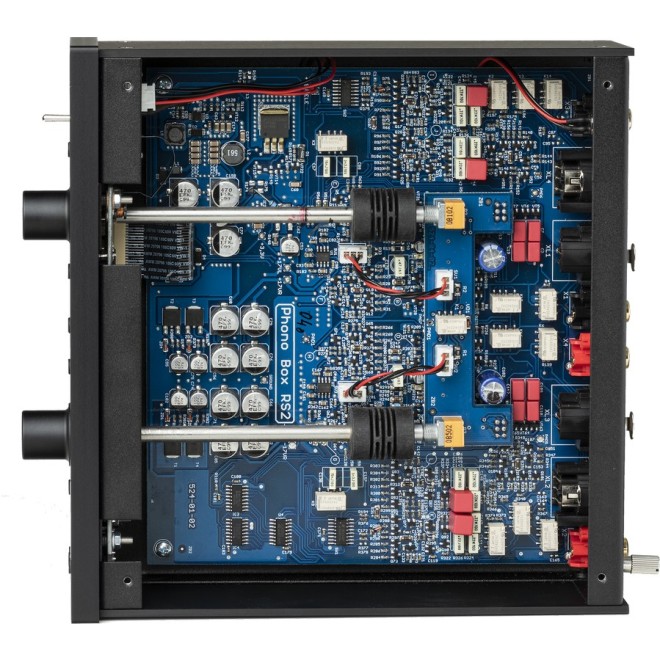

• Fully balanced signal routing
• Discreet design
• True dual-mono design

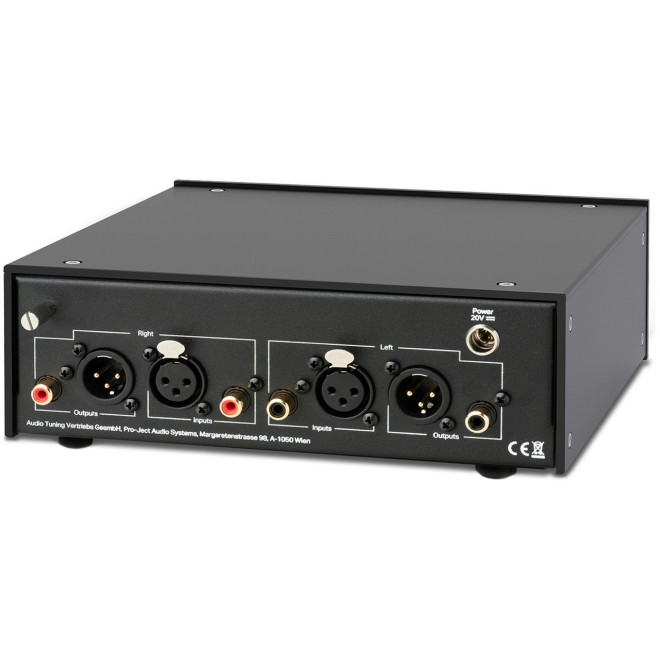

• Balanced XLR and unbalanced RCA/cinch inputs and outputs
• Purely passive RIAA and DECCA equalization
• Unique continuously variable input impedance and balance adjustment while listening
• Minimal noise and extremely low distortion levels
• High quality & elegant switches
• Metal housing protects against vibration and interference

Option

The optional linear power supply unit Power Box RS Uni 1-way (for one device) or the optional 4-way linear power supply unit Power Box RS Uni 4-way (for up to four devices) are available to further improve the sound and for remote switching on and off. The optional Power Box RS2 Phono linear power supply can simultaneously supply a phono preamplifier and a Pro-Ject turntable with clean power.

Technical data

• Input impedance: fixed 10 Ohm or 47kOhm, variable 10 - 1000 Ohm
• Switchable capacitance: 50, 100, 150, 200, 250, 300, 350, 400pF
• Gain MM: RCA: 40, 43, 46, 50dB (+6dB for XLR)
• Gain MC: RCA: 60, 63, 66, 70dB (+6dB with XLR)
• Signal-to-noise ratio: MM (40dB): 89dB A-weighted (10mV), MC (60dB): 79dB A-weighted (1mV)
• Distortion factor: < 0.0015% (MM 40dB, 1kHz); < 0.0024% (MC 60dB, 1kHz)
• RIAA deviation: within 0.4dB/20Hz - 20kHz
• Subsonic filter: 20Hz / 18dB/octave
• Inputs: 1 pair each of RCA/cinch and 3-pin XLR
• Outputs: 1 pair each of RCA/cinch and 3-pin XLR
• Power supply: 20V/3A DC; 110 - 240V, 50/60Hz
• Power consumption: max. 350mA DC
• Dimensions W x H x D (D with sockets): 206 x 72 x 200 (230) mm
• Weight: 1,600g without power supply unit
